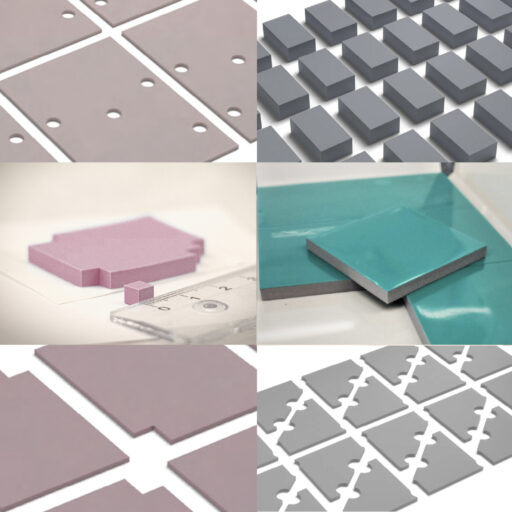

05 Gap fillers, pads, spacers, soft-ultra-soft gel silicone-free

Silicone-free

Gap fillers, pads, spacers, soft-ultra-soft gel silicone-free

We're regularly adding new products to this category.
You have questions or wishes about it?
Contact Us

Gap fillers, pads, spacers, soft-ultra-soft gel silicone-free

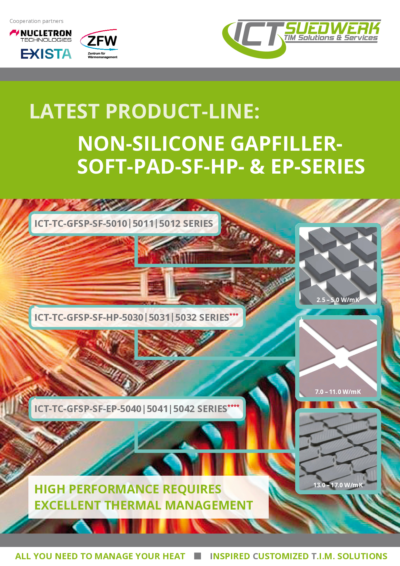

260305 ICT Shortform DIN A4 Folder SF 2 5 17 Watt EN

PRODUCT DESCRIPTION

Elastic, silicone-free gap filler pads are made from a silicone-free, resin-based thermoplastic elastomer (TPE) and ensure thermal contact between the component and the heatsink by compensating for small, medium, and large gaps as well as cumulative tolerances between the hotspot and heatsink depending on the setup. Silicone-free gap filler films are used in applications that exclude the use of silicone-based materials.

Silicone-free soft elastomers offer very good to very high thermal conductivity due to advanced composite technology, while providing excellent dielectric strength and high heat resistance. They exhibit no low molecular weight siloxane volatility and have very low outgassing rates, thereby preventing electrical contact problems or contamination risks. The materials are soft, flexible, and show good resilience with excellent compressibility.

Our portfolio includes several high-performance, highly thermally conductive silicone-free elastomers with thermal conductivities ranging from 2.5 to 17.0 W/m·K. The products are soft, compressible, and mechanically durable. They are also characterized by low density. Material thicknesses from 0.5 to 10.0 mm are available; other thicknesses are available on request.

Comparison table

Property	ICT-TC-GFSP-SF-5010	ICT-TC-GFSP-SF-5011	ICT-TC-GFSP-SF-5012	ICT-TC-GFSP-SF-HP-5030	ICT-TC-GFSP-SF-HP-5031	ICT-TC-GFSP-SF-HP-5032	ICT-TC-GFSP-SF-EP-5040	ICT-TC-GFSP-SF-EP-5041	ICT-TC-GFSP-SF-EP-5042
General Properties
Color	Gray	Red	Gray	Pink	Pink	Pink	Gray	Gray	Gray
Density	2.4 g/cm³	2.6 g/cm³	3.2 g/cm³	3.3 g/cm³	3.4 g/cm³	3.3 g/cm³	3.3 g/cm³	3.3 g/cm³	3.3 g/cm³
Mechanical Properties
Hardness (Shore 00)	60	60	55	60	50	50	50	50	50
Compressibility @ 20psi	22 %	42 %	46 %	40 %	35 %	34 %	32 %	31 %	28 %
Electrical Properties
Dielectric breakdown voltage	16 kV/mm	16 kV/mm	8 kV/mm	8 kV/mm	8 kV/mm	8 kV/mm	8 kV/mm	8 kV/mm	8 kV/mm
Volume resistivity	-	> 1,00 × 10¹¹ Ω/m	> 1,00 × 10¹⁰ Ω/m	> 1,00 × 10¹⁰ Ω/m	> 1,00 × 10¹⁰ Ω/m	> 1,00 × 10¹⁰ Ω/m	> 1,00 × 10¹⁰ Ω/m	> 1,00 × 10¹⁰ Ω/m	> 1,00 × 10¹⁰ Ω/m
Thermal Properties
Thermal conductivity	2.5 W/m*K	3 W/m*K	5 W/m*K	7 W/m*K	9 W/m*K	11 W/m*K	13 W/m*K	15 W/m*K	17 W/m*K
Thermal impedance @ 20 psi	≤ 0.682 C°-in²/W	≤ 0.543 C°-in²/W	≤ 0.208 C°-in²/W	≤ 0.182 C°-in²/W	≤ 0.166 C°-in²/W	≤ 0.148 C°-in²/W	≤ 0.131 C°-in²/W	≤ 0.119 C°-in²/W	≤ 0.103 C°-in²/W
